SWITCH TGL SMIN DPDT SOLDER TAG
Code: 8205918 Brand: SWITCH

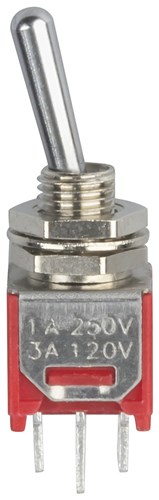

The ST0310 is a subminiature switch with a solder tag and threaded bush design. It has brackets to indicate its on-on switch position, and has an operating temperature range of -30;C to +85;C. Rated at 1Amp @ 250VAC for the subminiature size and 2Amps @ 250VAC for the miniature size with resistive load, it can handle 3Amps @ 28VDC for subminiature and 5Amps @ 28VDC for miniature. It is made of Diallyl Phthalate (DAP) case material and has a brass, chrome-plated toggle handle, nickel-plated brass bushing, stainless steel housing, and brass, electro-tin plated switch support components. The contacts can either be fixed and moving with silver-plated over copper alloy or gold-plated over nickel-plated alloy.
