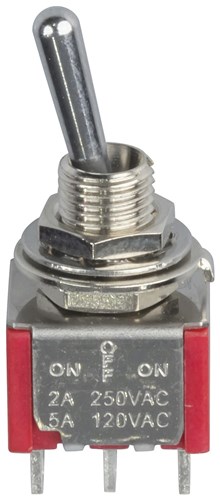

SWITCH TGL MINI CTR-OFF DPDT SOLDER TAG
Code: 8205922 Brand: DPDT
ST0356 is a switch with a solder tag and threaded bush for easy installation. It has a centre off bracket and can operate in temperatures ranging from -30 to +85 degrees Celsius. The subminiature contact rating is 1 amp at 250VAC, while the miniature contact rating is 2 amps at 250VAC. It has a switch material case made of DAP and a toggle handle made of brass with a chrome plating. The bushing is made of brass with a nickel plating, the housing is stainless steel, and the switch support components are brass with electro-tin plating for solderability. The contacts are silver-plated over copper alloy as standard or gold plated over nickel-plated alloy.
