SOLAR CHG CTRL PWM 12/24V 30A W/LCD
Code: 8204240

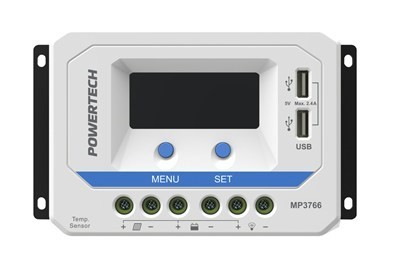

- Introducing the MP3766, a high-performance 3-stage PWM solar charge controller with a robust 30A capacity and an intuitive LCD display for monitoring battery status. This advanced charger utilizes Pulse Width Modulation (PWM) technology to efficiently charge 12V or 24V lead-acid batteries, including sealed, gel, or flooded types. It supports solar arrays up to 390W for 12V systems and up to 780W for 24V systems, making it ideal for battery capacities of 30Ah and above. The device features three-stage charging: constant current, constant voltage, and float charging. The backlit LCD provides real-time data on battery voltage, PV voltage, and PV current. Additionally, it includes two USB ports for charging electronic devices. Designed for permanent installation, the fanless unit is housed in a durable case with heavy-duty screw terminals accommodating up to 6AWG cabling. Comprehensive safety features include over-voltage, low-voltage protection, reverse connection, short-circuit, over-current, and over-temperature protection.
Key Features:
- PWM control technology
- Backlit LCD with real-time energy statistics and fault messages
- Temperature sensor input for battery charging compensation
- Low-voltage disconnect/reconnect
- 3-stage charging process
- Two programmable timers
- Dual USB ports for device charging
Optimize your solar energy system with the MP3766, ensuring efficient and safe battery management.
