MP3476

1 Year Warranty

240V Mains Power

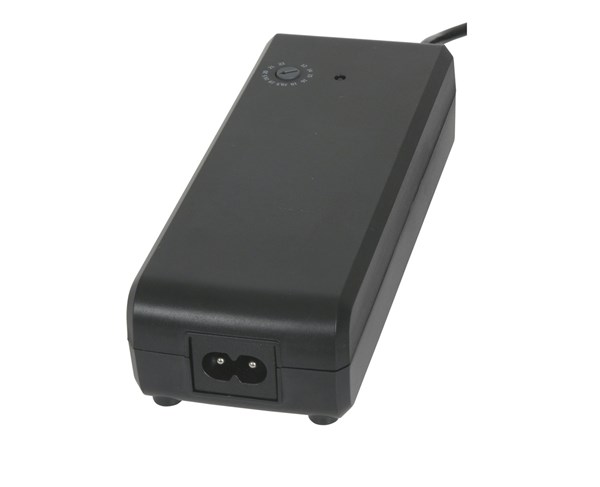

This universal laptop power supply has enough grunt to suit all but the most power demanding laptop models. Voltage is manually selectable and unit is supplied with 9 different connectors to suit a wide variety of different laptops. It can even charge newer HP laptops!

Outputs:
12VDC, 6A
14/15/16VDC, 5A
18/18.5/19/19.5/20VDC, 4.5A
21/22VDC, 5A

Connector N:
7.9mm Outer Diameter x 0.9mm Inner Diameter (pin) x 11.5mm Length
Suits: IBM, Lenovo

Connector QV2:
7.4mm Outer Diameter x 0.6mm Inner Diameter (pin) x 12.5mm Length
Suits: HP

Connecter ZV3:
7.4mm Outer Diameter x 0.6mm Inner Diameter (pin) x 12.5mm Length
Suits: Dell

Connecter E:
6.5mm Outer Diameter x 1.4mm Inner Diameter (pin) x 12.0mm Length
Suits: Fujitsu, Panasonic, Sony, Samsung, Dell

Connector G:
5mm Outer Diameter x 1mm Inner Diameter (pin) x 11.5mm Length
Suits: Samsung

Connector P:
5.5mm Inner Diameter x 2.5mm Outer Diameter x 12.0mm Length
Suits: Acer, Asus, Compaq, Gateway, HP, IBM, Fujitsu, Panasonic, Samsung, Sharp, Toshiba, Hitachi

Connector T:
4.75mm Outer Diameter x 1.7mm Inner Diameter x 10.0mm Length
Suits: HP

Connector X:
5.5mm Outer Diameter x 1.7mm Inner Diameter x 12.0mm Length
Suits: Acer

Connector AA:
3.0mm Outer Diameter x 1.0mm Inner Diameter x 8.0mm Length
Suits: Asus, Samsung, Acer

Connector AG:
4.5mm Outer Diameter x 0.60mm Inner Diameter (pin) x 12.0mm Length
Suits: HP

Connector AH:
Rectangular
Suits: Lenovo
