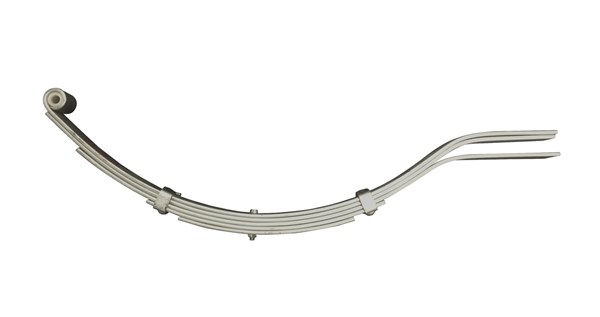

Slipper Spring 5 Leaf 45x6mm 500kg Single
Code: 8082223
- Trailer slipper spring 5 leaf - single Rated for 500kg each (1000kg per pair) 45mm x 6mm
TTK115
The term 'slipper spring' describes a leaf spring style where one end of the spring has the 'traditional' eye and the other end comprises the open leaf or 'leaves' of the spring forming a 'tail' which slides in a "keeper" or "hanger" which is generally welded to the chasis of the trailer. This style of spring is very simple and long wearing.
Springs stocked by RTM are painted & silverfrosted.
Length of spring is from eye to tail of spring. Spring bush dimensions 1/2" x 7/8" x 45mm (All).
Free Camber - 765mm
Shackle - 150mm
Bolt Dia: 1/2" Dia
