RFID Access Card Reader
Code: 8066407
- Keep your premises secure with our robust mini access card reader. With its, weatherproof design, anti-tamper and anti-passback protection, and adjustable alarm time of up to 3 minutes, you can rest assured that your premises are secure.
LA5351

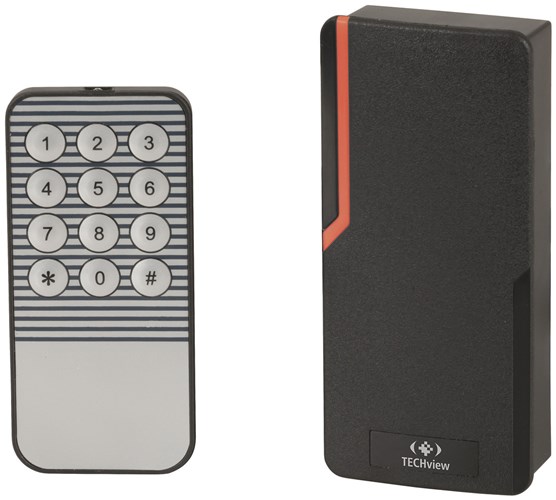

This is a robust mini access card reader which can be used standalone or slave with an Wiegand 26 input access control system. An infrared remote control is included to provide straight forward access to configuration and card add/removal (also secured by PIN for management functions). Inputs are provided for an electric door strike, exit button and an external alarm when used in standalone mode. With minimal additional wiring you can easily add fail safe / fail secure functionality. Security features can be optionally enabled such as lockout and alarm on 10 failed swipes in 10-minutes, for additional security awareness. Includes storage for up to 10,000 users and IP65 weatherproof housing.
Features:
. Standalone & Slave Control
. Reads EM & HID RFID Cards
. 10,000 User Capacity
. Weatherproof Design
. Anti-Tamper & Anti-Passback Protection
Specifications:
Input Voltage: 12VDC
Output Current: 3A (Max)
Card Type: 125KHz
Card Reading Distance: 30-80mm
Adjustable Alarm Time: 0-3 minutes
Wiegand Interface: 26 bit
Wiring Connection: Electric Lock, Exit Button, External Alarm
IP Rating: IP65
Standby Current: 15mA
WARNING: KEEP OUT OF REACH OF CHILDREN.
Button Cell Batteries are Hazardous (new or used). Keep batteries away from children. These Batteries
can cause severe or fatal injuries within 2 hours or less if swallowed or placed inside any part of the body.
Medical attention should be sought if it is suspected a battery has been consumed or inserted; Call the 24-hour
Poisons Information Centre in Australia on 131126 or New Zealand on 0800 764 766 or contact your country's
emergency department.
Please note: Prices are shown including GST (where applicable) and are in AUD$
