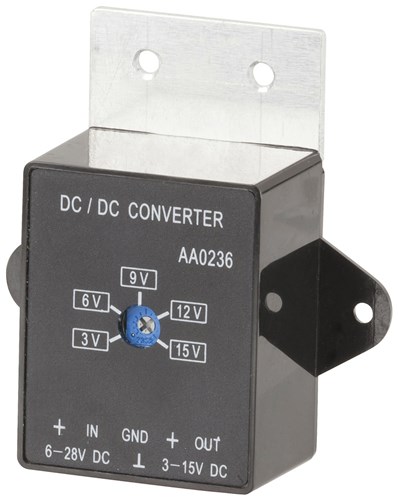

MODULE - CNVRTR VOLTAGE DC-DC STP DN
Code: AA0236
- This handy Digitech DC voltage converter module will step-down voltages so you can power your devices where a different power source is present.
AA0236
This pre-assembled module will save you time and money, all packaged into a small yet reliable form factor. It's simple to connect and configure to your needs. This could include powering 12VDC devices from a 6VDC motorbike battery or to run 12VDC devices from a 24VDC battery found in trucks. These units feature protection against short-circuits, overload and over-heating. They will auto-switch off in the event of overheating. Compact size and all models feature mounting holes. See our website for datasheets.
Three models to chose from:
DC to DC Step Down Voltage Converter Module
- Input voltage: 6-28V DC
- Output voltage: 3-15V DC
- Max output current: 1.5A
- Dimensions: 60(L) x 45(W) x 20(D)mm
AA-0236
DC to DC Step Up Voltage Converter Module
- Input voltage: 6-14V DC
- Output voltage: 11-26V DC
- Max output current: 2A
- Dimensions: 70(L) x 60(W) x 23(D)mm
AA-0237
24VDC to 12VDC Step Down Voltage Converter Module (not user selectable)
- Input voltage: 24V DC
- Output voltage: 12V DC
- Max output current: 1.1A
- Dimensions: 70(L) x 60(W) x 23(D)mm
AA-0238
