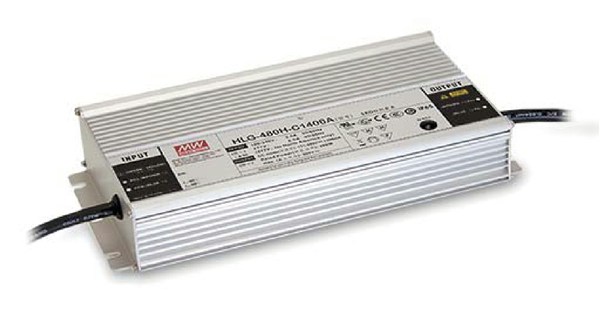

Mean Well 480W 24V 20A IP67 Dimmable LED Driver HLG-480H-24B
Code: 8074172
- 24V 20A 480W HLG Series Adjustable LED Power Supply Mean Well HLG-480H-24B AU/NZ Mains Lead Input Bare Lead Output
401607
HLG-480H series is a 480WAC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-480H operates from 90 305VAC and offers models with different rated voltage ranging~between 24V and 54V. Thanks to the high efficiency up to 95.5%, with the fanless design, the entire series is able to operate for -40~ +90 C Ccase temperature under free air convection. The design of metal housing and IP65/IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-480H is equipped with various function options, such asdimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Applications:
LED high-bay lighting
Parking space lighting
LED stage and event lighting
LED greenhouse lighting
Specifications:
Model: HLG-480H-24B
3 in 1 dimming function (0~10VDC, 10V PWM signal and resistance)
Rated Current: 20A
Rated Power: 480W
Nominal Voltage: 24VDC
Output Function: Adjustable current and voltage via potentiometer
Input Voltage: 90-305VAC or 127-431VDC
Input Connection: Pre-wired with 3 pin AU/NZ Mains Plug
IP Rating: IP67
