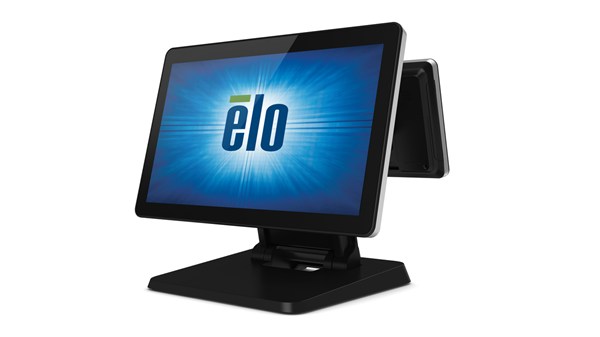

2002L 19.5in Desktop PCAP USB Touch 701799
The Elo M-Series 2002L 20-inch widescreen LED touchscreen monitor delivers a seamless zero-bezel, edge-to-edge glass design with Elo s industry-leading TouchPro PCAP technology. The sleek, retail-hardened touchscreen features a 10-touch tablet-like experience and an anti-glare surface built to withstand the rigors of continuous public use, making the 2002L well suited for high traffic environments.
Our TouchPro PCAP technology supports touch through functionality for installations that require a front layer of glass with thickness s up to 6mm or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully-encased behind a cover glass, our robust PCAP Open Frames are purpose-built for durability in various applications and environments: from self-service kiosks to highly used gaming cabinets to harsh industrial machines.
Specifications
Touch Technology: PCAP (TouchPro Projected Capacitive) - 10 Touch
Diagonal Size: 19.5" diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: 436.9 x 240.7mm
Resolution : 1920x1080
Horizontal Viewing Angle: 89 or 178 total
Vertical Viewing Angle: 89 or 178 total
Number of Colors : 16.7 million
Brightness (typical) LCD panel: 250 nits
Brightness (typical) TouchPro PCAP: 230 nits
Response Time-total (typical) : 20 msec
Contrast Ratio: 3000:1
Input Video Format: HDMI, Mini-VGA (Mini-VGA to VGA DE-15 Male connecter cable included)
Touch Interface: USB
Speakers: Two 2W internal speakers
Case Style : Desktop
Mounting Options : VESA 4-hole 75mm and 100mm mounting interface on rear of unit
Enclosure Color: Black
Power Supply: External AC/DC Adapter
Monitor input Voltage: 12VDC
Monitor Input Jack: Pin OD:2.0mm, Barrel ID:6.4mm
AC/DC I/P Voltage: 100-240VAC, 50/60Hz, O/P Voltage: 12VDC
AC/DC I/P Connector: IEC 60320 C14, O/P Connector: DC Jack ID: 2.1mm, OD: 5.5mm
Power Consumption ON: 18.4W
Power Consumption SLEEP: 0.33W
Power Consumption OFF: 0.24W
Operating Temperature : 0 C to 40 C
Humidity Operating: 20% to 80%
Sealability : Touchscreen sealed to bezel, Touchscreen sealed to LCD
Monitor Dimensions (with Stand): 488.31(W) x 352.3(H) x 193.4(D)mm
Weight: 6.8 Kg
