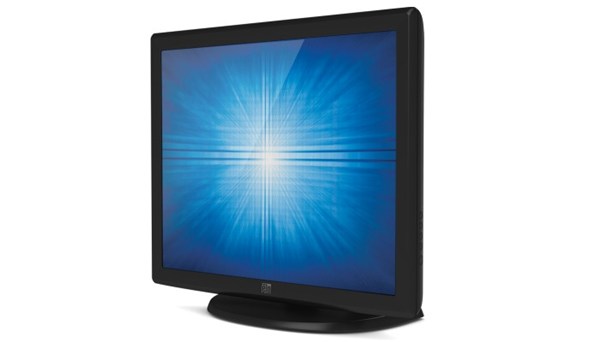

1915L 19 INT DESKTOP TOUCHMONITOR 701174
The Elo 1915L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1915L can be used in a wide variety of environments with its ability to register inputs from a finger, gloved hand or soft stylus with a fast and accurate response. The touchmonitor is available with Elo s industry-leading touch technologies and multiple mounting options to support most application uses.
The IntelliTouch surface acoustic wave (SAW) dual touch technology offers the ultimate in optical quality. All touchscreens provide pure glass construction to deliver a clear, bright and long-lasting performance. With the touchscreens being scratch-resistant, it is nearly impossible to wear them out.
Specifications
Touch Technology: SAW (IntelliTouch Surface Acoustic Wave) - Single Touch
Diagonal Size: 19" diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 5:4
Active Area: 376.3 x 301.1mm
Resolution : 1280 x 1024
Horizontal Viewing Angle: 85 or 170 total
Vertical Viewing Angle: 80 or 160 total
Number of Colors : 16.7 million
Brightness (typical) LCD panel: 250 nits
Brightness (typical) IntelliTouch: 225 nits
Response Time-total (typical) : 5 msec
Contrast Ratio: 1000:1
Input Video Format: VGA
Touch Interface: USB
Case Style : Desktop
Stand Options : Tilt, remove
Mounting Options : 100 mm VESA mount (Threaded-through mounting holes, under stand)
Security lock receptacle
Enclosure Color: Dark Gray
Power Supply: External AC/DC Adapter
Monitor input Voltage: 12VDC
Monitor Input Jack: Pin OD:2.0mm, Barrel ID:6.4mm, Barrel Len: 8.8mm
AC/DC I/P Voltage: 100-240VAC, 50/60Hz, O/P Voltage: 12VDC
AC/DC I/P Connector: IEC 60320 C14, O/P Connector: DC Jack ID: 2.1mm, OD: 5.5mm, Len: 9mm
Power Consumption ON: 16.25W
Power Consumption SLEEP: 1.19W
Power Consumption OFF: 0.63W
Operating Temperature : 0 C to 40 C
Humidity Operating: 20% to 80%
Sealability : Touchscreen sealed to bezel, Touchscreen sealed to LCD
Monitor Dimensions (with Stand): 429(W) x 379(H) x 207(D)mm
Weight (with stand) : 7.9 kg
