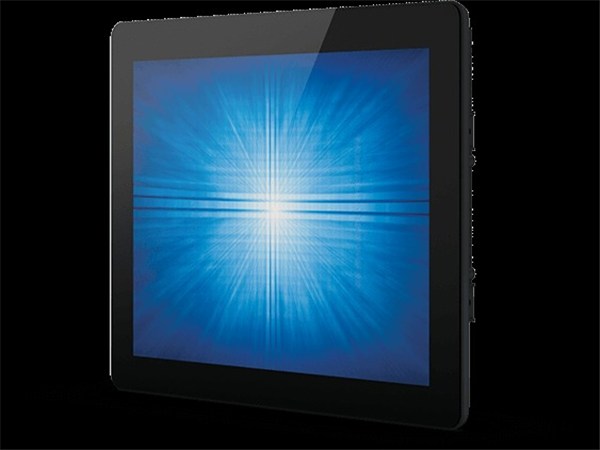

The Elo 1590L open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. 15 inch Intellitouch screen Elo E326738 701851
The Elo 1590L 15-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.
The IntelliTouch surface acoustic wave (SAW) dual touch technology offers the ultimate in optical quality. All touchscreens provide pure glass construction to deliver a clear, bright and long-lasting performance. With the touchscreens being scratch-resistant, it is nearly impossible to wear them out.
Specifications
Touch Technology: SAW (IntelliTouch Surface Acoustic Wave) - Single Touch
Diagonal Size: 15" diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 4:3
Active Area: 304.1 x 228.1mm
Resolution : 1024 x 768
Horizontal Viewing Angle: 80 or 160 total
Vertical Viewing Angle: 70 /80 or 150 total
Number of Colors : 16.2 million
Brightness (typical) LCD panel: 300 nits
Brightness (typical) IntelliTouch: 270 nits
Response Time-total (typical) : 23 msec
Contrast Ratio: 800:1
Input Video Format: HDMI, VGA & Display Port
Touch Interface: USB
Case Style : Desktop
Stand Options : Tilt, remove
Mounting Options : 100 mm VESA mount (Threaded-through mounting holes, under stand)
Enclosure Color: Black
Power Supply: External AC/DC Adapter
Monitor input Voltage: 12VDC
Monitor Input Jack: Pin OD:2.0mm, Barrel ID:6.4mm, Barrel Len: 8.8mm
AC/DC I/P Voltage: 100-240VAC, 50/60Hz, O/P Voltage: 12VDC
AC/DC I/P Connector: IEC 60320 C14, O/P Connector: DC Jack ID: 2.1mm, OD: 5.5mm, Len: 9mm
Power Consumption ON: 12.5W
Power Consumption SLEEP: 1.5W
Power Consumption OFF: 0.5W
Operating Temperature : 0 C to 40 C
Humidity Operating: 20% to 80%
Sealability : Touchscreen sealed to bezel, Touchscreen sealed to LCD
Monitor Dimensions (Bezel): 264.4(W) x 336.4(H) x 41.9(D)mm
Monitor Dimensions (Zero Bezel): 284.9(W) x 358(H) x 35.6(D)mm
Weight (with stand) : 2.9 kg
