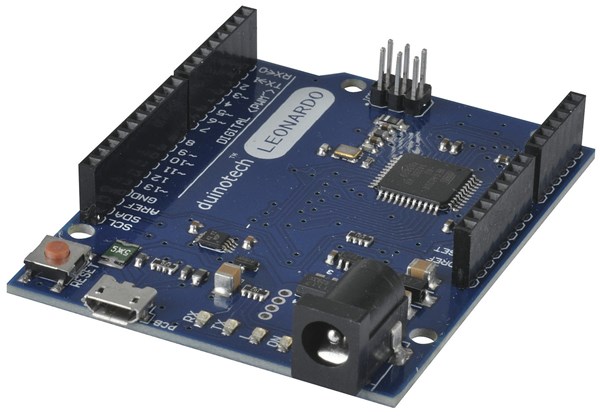

Duinotech Leonardo r3 Main Board

Code: 8009286
Stock Status:
Delivery (2-5 Days)
  • Now you can have your development board emulate a computer keyboard, mouse, joystick and many other types of input device for fun projects such as retro arcade controllers.

    XC4430

    Arduino? Compatible


    Most of the Duinotech models use two chipsets, one for the main controller, one for USB communication. The Duinotech Leonardo combines both these functions into a single IC, which opens to door for more advanced USB functions. The development board also boasts more analogue inputs (12), and an extra PWM channel.

    Features:

    • Fully Arduino compatible
    • ATMega32u4 microcontroller
    • EEPROM: 1KB
    • Speed: 16MHz
    • Built in USB-Serial
    • IO:
      Digital IO: 20 pins (7 are configurable as digital or PWM)
      PWM Capable: 7 pins
      Analogue Inputs: 12 pins (6 are shared with digital pins)
      Serial Ports: 2 (One USB, one UART, more supported via SoftwareSerial library)

    Input voltage:

    • 5VDC Regulated via USB port or 5V pin
    • 7-12VDC via vin pin
    • On-board regulator supplies 5V when unit is powered via vin pin


$33.97

EACH

Add

Please note: Prices are shown including GST (where applicable) and are in AUD$
