AC1724

1 Year Warranty

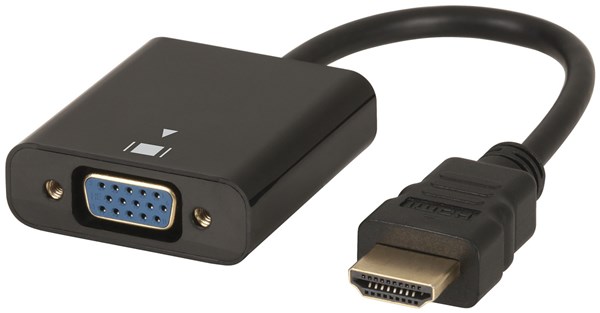

Convert a HDMI source such as a DVD or Blu-ray player to a VGA display. This unit will also convert the audio signal from HDMI to analogue audio which can be output to some speakers or headphones using the 3.5mm audio socket. This unit is powered by the HDMI signal and includes a USB Micro-B socket in case additional power is required for stability. Includes a 1m 3.5mm stereo audio cable.

Specifications:

• Input: 1 x HDMI
• Output: 1 x VGA, 1 x 3.5mm Audio Jack
• HDMI: 1.4b
• HDMI Resolution: 1080p (1920 x 1080), 1080i (1920 x 1080), 720p (1280 x 720), 576p (720 x 576), 480p (720 x 480)
• VGA Resolution: 1080p (1920 x 1080), 1080i (1920 x 1080), 720p (1280 x 720), 576p (720 x 576), 480p (720 x 480)
• Frequency: 50/60Hz
• Power: 5VDC at 500mA (Micro-B USB)
• Cable Length: 160mm
• Dimensions: 45(L) x 45(W) x 15(H)mm
