Arduino Compatible Thin-Film Pressure Sensor
Code: 8008815

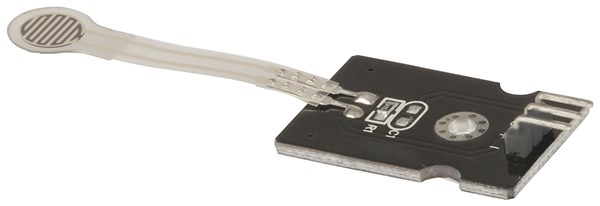

- A highly sensitive waterproof sensor so your project can detect pressure. The 5mm round thin sensor is mounted at the end of a 40mm long flexible lead that connects to your favourite microcontroller. Powered from either 3.3V or 5V.
XC3738
Arduino Compatible
This sensor module works like an adjustable resistor that changes based on pressure on the centre pad. It converts pressure signal from the sensor into an electrical signal output with a corresponding change in intensity to differing force. Easy to interface via a 3 pin header connection.
Features:
- Flexible nano sensor
- Waterproof
- Pressure sensitive
Specifications:
- Range: 0-0.5kg*
- Thickness: <0.25mm
- Response Point: <20g
- Repeatability: <5.8% (50? Load)
- Accuracy: 2.5% (85% range interval)
- Durability: >100,000 Times
- Response Time: <1 millisecond
- Recovery Time: <15 milliseconds
*Note: Capable of measuring gross weight up to 10kg, but most accurate results are obtained up to 0.5kg.
