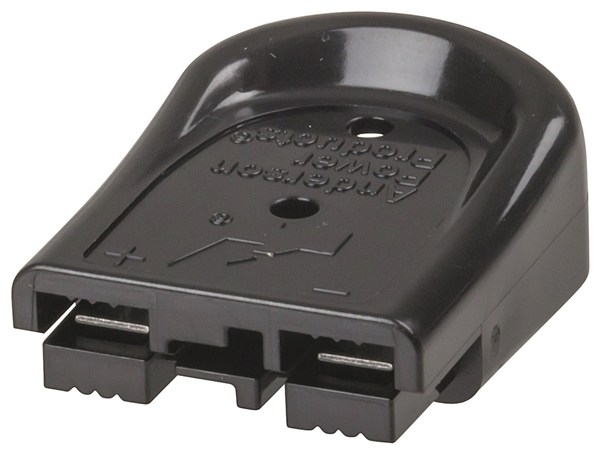

Anderson 35A SBS Mini Connector - Black

Code: 8012233
Stock Status:
Delivery (2-5 Days)
  • Compact high-current polycarbonate connectors to meet multiple needs.

    PT4480

    1 Year Warranty

    Compact and ergonomic, these high-current connectors protect against accidental contact with dangerous DC circuits. Inline and wire-to-wire configurations allow for one connector to meet multiple needs. The mini connector features touch-safe polycarbonate housing and two finger proof positions. Contact pins fitted in Australia to ensure the highest quality connection. Available in black, red and grey.

    Features:
    Anderson s smallest SBS connector
    Touch-safe housing

    Specifications:
    Contact Rating: 10AWG 35A
    Contact Wire Size: 0.75 to 4.0mm
    Voltage Rating: 600V
    Max Wire Outer Diameter: 4.65mm
    Contact Retention Force: 9kg (20lbs) minimum
    Operating Temperature: -20 to 105 C
    Dimensions: 30(L) x 23(W) x 10(H)mm (excluding wire)

$5.58

EACH

Add

Please note: Prices are shown including GST (where applicable) and are in AUD$
