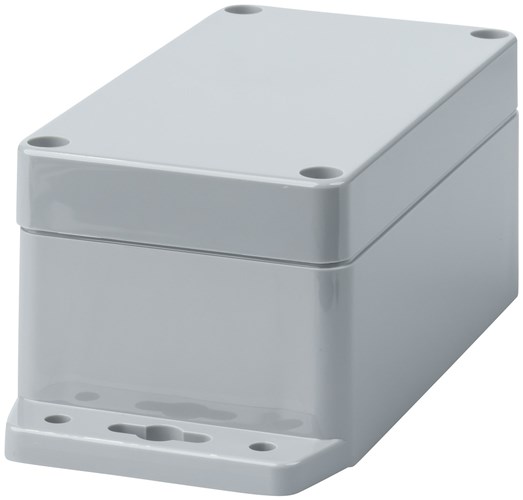

ABS Seal Box 115X65X55 with Flange G308MF
Code: 8009357
- Made with ABS Material. Moulded in dark grey. Operating temperature: -20 to +80C
HB6138
Features:
Made with ABS Material
Moulded in dark grey
Operating temperature: -20 to +80C
Bosses on internal base allow fixing of PCBs horizontally, or connection of terminals etc.
The lid and base incorporate a tongue and groove sealing system with a neoprene gasket
Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
Some sizes also available with external flange to allow mounting after the box has been sealed
Designed to IP65 of IEC529 and NEMS 4 (dust and hose proof)
Internal guide slots for mounting PCB assemblies vertically (Not on HB-6120 or HB-6134)
Box: 115(W) x 65(D) x 55(H)mm
Base: 145(W) x 65(D)mm
Dark Grey:
HB6120 64(W) x 58(D) x 35(H)mm
HB6122 115(W) x 65(D) x 40(H)mm
HB6124 115(W) x 65(D) x 55(H)mm
HB6126 115(W) x 90(D) x 55(H)mm
HB6128 171(W) x 121(D) x 55(H)mm
HB6129 171(W) x 121(D) x 80(H)mm
HB6130 222(W) x 146(D) x 55(H)mm
HB6132 222(W) x 146(D) x 75(H)mm
HB6134 240(W) x 160(D) x 90(H)mm
Dark Grey with Mounting Flange:
HB6121 Box: 64(W) x 58(D) x 35(H)mm
Base: 94(W) x 58(D)mm
HB6123 Box: 115(W) x 65(D) x 40(H)mm
Base: 145(W) x 65(D)mm
HB6127 Box: 115(W) x 90(D) x 55(H)mm
Base: 145(W) x 90(D)mm
HB6125 Box: 171(W) x 121(D) x 55(H)mm
Base: 201(W) x 121(D)mm
