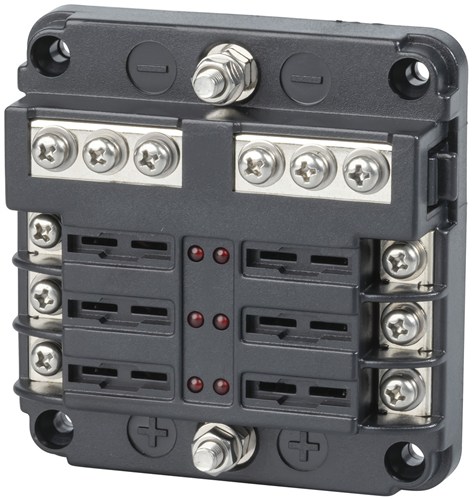

6 WAY FUSE BLOCK WITH BUS BAR

Code: SZ2031
Stock Status: In Stock
  • This versatile fuse block provides 6 way fused power distribution from your positive terminal and fits up to 6 standard blade fuses rated up to 30 amps each. The bus bar is distribution for the negative wires. Comes with cover (not pictured).

    SZ2031

    This unit is especially handy in a boat or caravan which may not have a chassis-ground type system. Each fuse output accepts up to a 30 amps, up to 100 amps combined, with handy fuse-blown indication. Fuses not included, uses standard automotive fuses.

    Features:
    • Up to 30A per output
    • Red LED blown fuse indication
    • Negative bus bar

    Specifications:
    • Main Input Line:
      Terminal Rating: M5 Threaded Studs (32VDC, 100A maximum)
      Wire Size: 4-6 AWG
    • Single Output Line:
      Terminal Rating: M4 Threaded Studs (32VDC, 30A maximum)
      Wire Size: 12-16 AWG
    • Terminals: Nickel Plated Copper
    • Screws: Stainless Steel


$29.95

EACH

Add

Please note: Prices are shown including GST (where applicable) and are in AUD$
