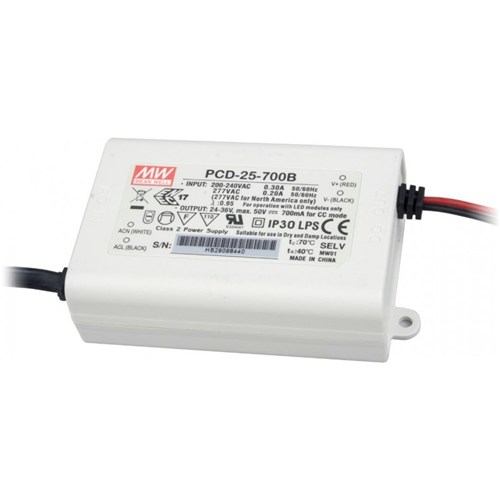

25W LED PSU 180-295VAC 24-36VDC/0.7A DIM

Code: 8074204
Stock Status:
Delivery (2-5 Days)
  • 25W LED PSU 180-295VAC 24-36VDC/0.7A DIMPCD-25-700BSO Meanwell

    401462

    Features:
    AC Phase-Cut Dimming
    Works with Leading Edge and Trailing Edge Triac Dimmers
    Constant Current Design
    Short Circuit Protection
    Over-Temperature Protection
    Cooling by Free Air Convection
    Fully Isolated Plastic Case
    IP42 Design
    100% Full Load Burn-in Test
    3 Year Warranty

    Specifications:
    Rated Current: 700mA
    Operating Voltage: 24-36VDC
    Current Accuracy: 5%
    Ripple: 2.7V p-p
    No-Load Output Voltage: 50VDC
    Efficiency: 81%
    AC Current: .3A at 230VAC
    Working Temperature: -30 to 60 C

$35.93

EACH

Please note: Prices are shown including GST (where applicable) and are in AUD$
