15A Panel Mount Thermal Circuit Breaker (CBE)

Code: ELE/SF2315
Stock Status:
Delivery (2-5 Days)
  • Panel mount manual resetting thermal type breaker that can connect via spade terminals rated at 15 amps.

    SF2315

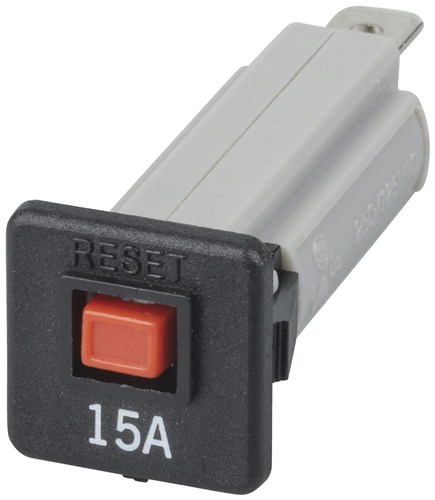

    These attractive looking units feature a black 19mm square facade with a centrally mounted bright red `trip' button. When tripped, the red button extends and to reset simply push button back in (once fault has been cleared). It's slow response time ideal for inductive/reactive loads. IEC 934 TYPE R/TO.

    Features:

    • Hold Current: 100% load indefinitely
    • Trip current:
      Within 1 hour at 135% load
      Within 1 min at 200% load
    • Contact Resistance: 0.16 ohms

$8.91

EACH

Add

Please note: Prices are shown including GST (where applicable) and are in AUD$
