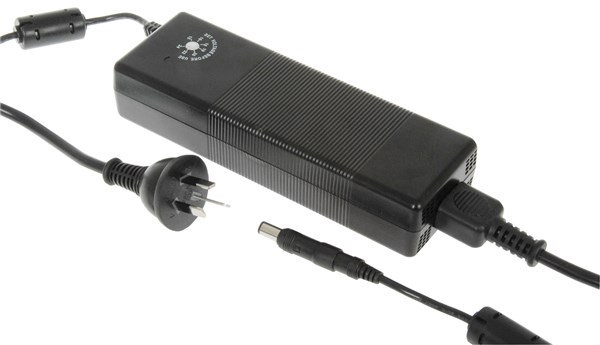

With the huge 132W output, this power supply is designed for use with bigger laptop computers and is compatible with the majority of major brands. MP3346
Specifically designed for use with laptop computers, this power supply has a universal input voltage 100-240VAC 50/60Hz and has a regulated output. It features short circuit and overload protection, an LED power indicator and USB output for charging USB devices.
The power supply comes with 9 different polarity protected DC adaptors that suit the majority of laptop computer on the market such as: ACER, IBM, DELL, ASUS, Sony, Toshiba, Samsung, Compaq, Sony, Panasonic and more.
12.0V DC 8.5A
14.0 / 15.0V DC 7.0A
16.0 / 18.0V DC 6.5A
18.5 / 19.0 / 19.5 / 20.0V DC 6.0A
22.0 / 24.0 DC 5.5A
134.5W max.
5V @ 500mA 2.5W (USB A Power)
Outputs:
12VDC, 8.5A
14/15VDC, 7A
16/18VDC, 6.5A
18.5/19/19.5/20VDC, 6A
22/24VDC, 5.5A
5V, 0.5A (USB)
Connector N:
7.9mm Outer Diameter x 0.9mm Inner Diameter (pin) x 11.5mm Length
Suits: IBM, Lenovo
Connector QV2:
7.4mm Outer Diameter x 0.6mm Inner Diameter (pin) x 12.5mm Length
Suits: HP
Connecter ZV3:
7.4mm Outer Diameter x 0.6mm Inner Diameter (pin) x 12.5mm Length
Suits: Dell
Connecter E:
6.5mm Outer Diameter x 1.4mm Inner Diameter (pin) x 12.0mm Length
Suits: Fujitsu, Panasonic, Sony, Samsung, Dell
Connector G:
5mm Outer Diameter x 1mm Inner Diameter (pin) x 11.5mm Length
Suits: Samsung
Connector P:
5.5mm Inner Diameter x 2.5mm Outer Diameter x 12.0mm Length
Suits: Acer, Asus, Compaq, Gateway, HP, IBM, Fujitsu, Panasonic, Samsung, Sharp, Toshiba, Hitachi
Connector T:
4.75mm Outer Diameter x 1.7mm Inner Diameter x 10.0mm Length
Suits: HP
Connector X:
5.5mm Outer Diameter x 1.7mm Inner Diameter x 12.0mm Length
Suits: Acer
Connector AG:
4.5mm Outer Diameter x 0.60mm Inner Diameter (pin) x 12.0mm Length
Suits: HP
Connector AH:
Rectangular
Suits: Lenovo
