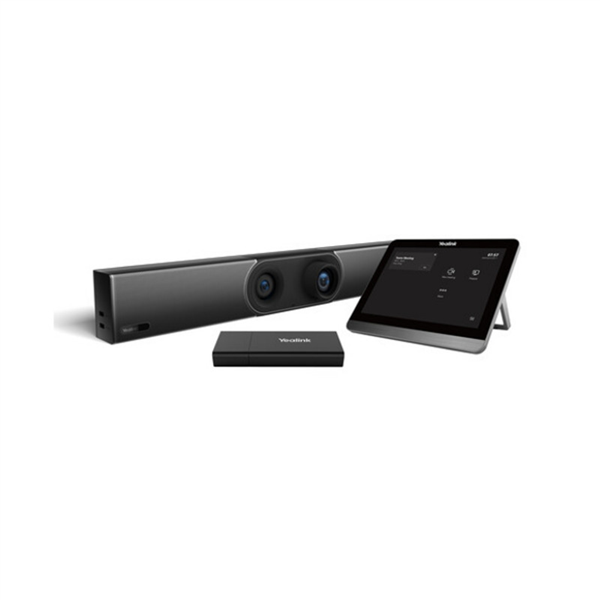

YEALINK A30-021 TEAMS KIT
Code: 8222751
- YEALINK A30 Collaboration Bar for Microsoft Teams with CTP18 Touch Panel and VCH51 Share Box, 2-Year AMS for Medium to Large Rooms
**Specifications:**
- **Camera:** 8 MP Wide and Telephoto with Privacy Shutter
- **Field of View:** Wide Camera: 120° (DFOV), 112° (HFOV), 79° (VFOV); Telephoto Camera: 90° (DFOV), 81° (HFOV), 50° (VFOV), 10x Hybrid Zoom (3.5x optical, 3x digital)
- **Rotation Angle:** Telephoto Camera: Horizontal +25/-25°, Vertical +16/-16°
- **Video Codecs:** H.264 High Profile, H.264 SVC, H.264
- **Microphone:** Built-in 8 MEMS array, Frequency Response: 100Hz to 8kHz
- **Speaker Volume:** Max 86db@0.5m, Frequency Response: 100Hz to 8kHz
- **Connections:** 2 x HDMI output (CEC supported), 1 x HDMI input (via VCH51 Sharing Kit), 1 x Motion Sensor (Teams supported), 2 x USB-A, 1 x 10/100M/1000M Ethernet port, 1 x Yealink VCH port (RJ-45), 1 x Power port, 1 x Security lock slot, 1 x Reset slot
- **Network:** Dual-band Wi-Fi (2.4 GHz/5 GHz), IPv4/IPv6, DHCP/static IP, HTTP/HTTPS web server
- **Bluetooth:** Built-in Bluetooth 4.2
- **Meeting Control:** Add Participants, Hold/Resume, Camera On/Off, Mute/Unmute, Volume Up/Down, Hang up
- **Power Adapter:** AC 100-240V Input, DC 48V/0.7A Output
- **USB Output:** 5V/0.5A
- **Power Consumption:** Idle < 12.5W, Normal Operating: 14.9W, Max: 18W
- **Dimensions:** 700 x 98 x 121 mm
- **Weight:** 7.05 kg
- **Operating Humidity:** 10-90%
- **Operating Temperature:** 0-40°C
- **Storage Temperature:** -30 to +70°C
- **Operating System:** Android 10
**Features:**
- Includes CTP18 Touch Panel
- 4 x e-PTZ Camera (Wide Camera)
- Intelligent Features: Auto Framing, Speaker Tracking, Picture in Picture, Smart Gallery (Zoom only), 9x Camera Presets
- Built-in 8 MEMS Microphone Array with 6-meter Voice Pickup Range
- Supports External Microphone
- Yealink Noise Proof Technology
- Echo Cancellation
- Full-duplex Audio
- Beamforming-directed Voice Pickup Technology
- Integrated Calendar
- One-click Join
- Meeting Collaboration: Content Sharing and Whiteboard
**Package Contents:**
- MeetingBar A30 Endpoint
- 3m Ethernet Cable
- 2 x 1.8m HDMI Cable
- Mounting Bracket and Accessories
- Power Adapter
- Quick Start Guide
- CTP18 Touch Panel
- VCH51 Sharing Kit (HDMI/USB-C)
