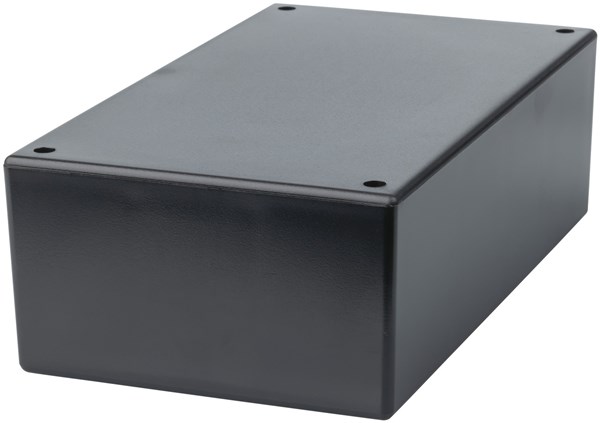

ENCL JIFFY UB2 BLK 197X113X63MM
Code: 8203756
- Jiffy Box - Black ABS - Dimensions: 197 x 113 x 63mm (Model: HB6012)
Crafted from high-quality ABS plastic, these jiffy boxes are designed to meet all customer requirements for a constructor's box. They adhere to industry standards for external dimensions and provide optimal PCB fitting internally.
Key Features:
- Durable, dimple-free finish ensures excellent adhesion for screen printing.
- Lids include a 5mm grid of 'centre punch' points on the underside for efficient and precise drilling.
- Lids also feature a 10mm grid of scribed lines for easy and accurate cutting or filing of cut-outs.
- PCB guides on the box sides come with snap-in locators, eliminating the need for stand-off hardware when mounting boards horizontally.
- The box base includes a grid of 'centre punch' points for added convenience.
- Comes with lid fixing screws.
Internal Dimensions:
- Vertical PCB fitting: 105 x 57mm
- Horizontal PCB fitting: 172 x 104mm
Please note: Prices are shown including GST (where applicable) and are in AUD$
