DC PWR MTR 4.8-60VDC 200A W/LCD ANDERSON
Code: 8204272

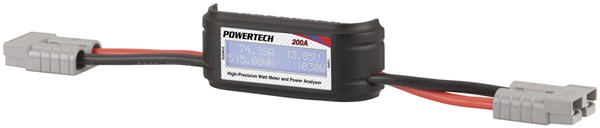

- The MS6192 is a comprehensive power measurement device, functioning as a power meter, volt meter, amp-hour meter, ammeter, and energy meter. It is engineered for systems operating under 60V and supports currents up to 200A (Peak). Equipped with Anderson connectors on both the source and load ends, it integrates seamlessly into high-current DC setups. This device is ideal for monitoring battery charge from chargers or alternators, assessing solar panel output, evaluating charge controller output, and analyzing battery health and performance. It also measures power and energy consumption of any battery-powered load device. With a minimal 7mA operational draw, it ensures negligible impact on power production. Suitable for use in vehicles, boats, caravans, off-grid installations, and wind or solar setups.
**Features:**
- Anderson type 50-Amp connectors
- 75A continuous / 200A Peak
- Compatibility with up to 60VDC
- Accurate measurement of amps, volts, watts, amp-hours, watt-hours, peak amps, minimum volts (sag), and peak watts
**Specifications:**
- Voltage Range: 6V - 60V (0V - 60V with optional auxiliary battery)
- Current Measurement: 0-200A @ 0.01A Resolution
- Voltage Measurement: 0-60VDC @ 0.01V Resolution
- Power Measurement: 0-6554W @ 0.1W Resolution
- Watt Hours: 0-650kWh @ 0.1Wh Resolution
- Ampere Hours: 0-6554Ah @ 0.01Ah Resolution
- Cable: 8AWG
- Display: 16 x 2 backlit LCD
- Dimensions: 110(W) x 45(H) x 26(D)mm (Excluding Cables)
- Net Weight: 150g
The MS6192 comes with a 2-year warranty, ensuring reliability and peace of mind.
