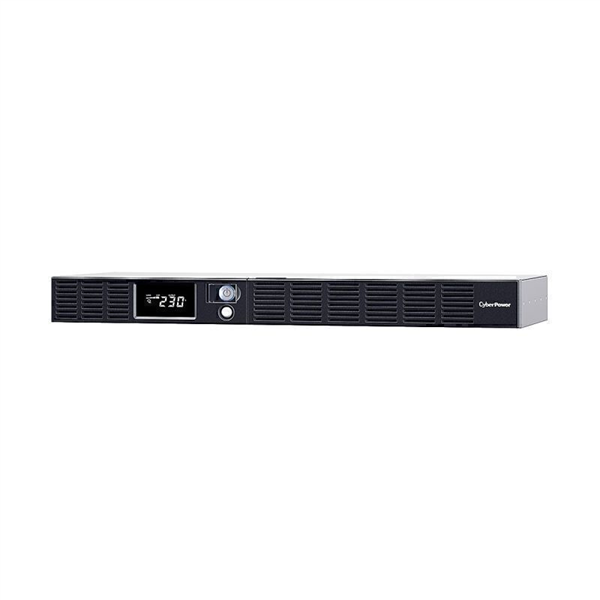

CP SMART APP RACK LCD 600VA
Code: 8217917
- The CyberPower OR600ERM1U-AU Line-Interactive UPS provides Simulated Sine Wave output power, suitable for office systems such as PCs, workstations, networking devices, and peripherals. It is typically used in back offices and server rooms.
Specifications:
- Phase: Single Phase
- Form Factor: Rackmount
- UPS Topology: Line-interactive
- Energy Saving Technology: GreenPower UPS Bypass Technology
- Nominal Input Voltage: 230 Vac
- Input Voltage Range: 165 - 271 Vac
- Input Frequency: 50 ± 3 Hz - 60 ± 3 Hz
- Input Frequency Detection: Auto-sensing
- Rated Input Current: 10 A
- Input Connector Type: IEC C14
- Detachable Power Cord Plug Type: IEC C14 x 1
- Power Cord Length: 1.83 m
- Output Capacity: 360 Watts
- On Battery Waveform: Simulated Sine Wave
- On Battery Voltage: 230 Vac ± 10%
- On Battery Frequency: 50 ± 1% Hz - 60 ± 1% Hz
- Power Factor: 0.6
- Automatic Voltage Regulation: Single Boost
- Overload Protection: Internal Current Limiting, Circuit Breaker
- Total Outlets: 6
- Outlet Type: IEC C13 x 6
- Battery & Surge Protected Outlets: 4
- Surge-Only Protected Outlets: 2
- Typical Transfer Time: 4 ms
- Runtime at Half Load: 13 min
- Runtime at Full Load: 4 min
- Typical Recharge Time: 8 hours
- Start On Battery: Yes
- User-replaceable: Yes
- Hot-swappable: Yes
- Battery Type: Sealed Lead-acid
- Replacement Battery Pack: RBP0019
- RBP Quantity: 1
- Surge Suppression: 405 Joules
- EMI/RFI Filtration: Yes
- Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out
- LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Other Information
- LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output
- HID Compliant USB Port: 1
- Serial Port: Dry Contact
- Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault
- Management Cable: Power Cord x4, USB Cable x1
- Power Management Software: PowerPanel Business (Recommended)
- SNMP/HTTP Remote Monitoring: Yes, with optional RMCARD205
- Enclosure Construction: Metal
- Rackmount Ears: Yes
- Dimensions: 433 x 44 x 235 mm
- Weight: 7.8 kg
- Certifications: CE, EAC, RCM
Features:
- Line-interactive UPS Topology
- Simulated Sine Wave Output
- Overload Protection
- Surge and Spike Protection
- Phone/Fax/Modem/DSL/Network Protection
- USB Connectivity Port
- SNMP/HTTP Remote Management Capability (Optional)
- Energy Saving Technology
- Automatic Voltage Regulation (AVR)
- Hot-swappable Batteries
- EMI and RFI Filtration
- LCD Status Display
- PowerPanel Management Software
