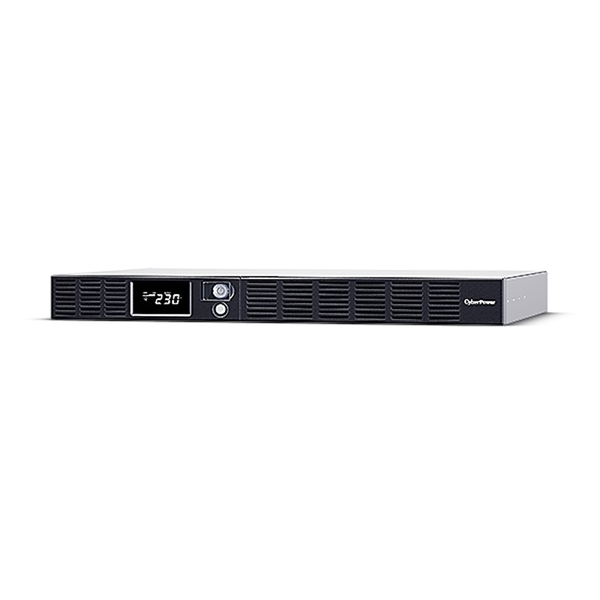

CP SMART APP RACK 1500VA UPS
Code: 8217916
CP Smart App Rack 1500VA UPS
Specifications:
- Phase: Single Phase
- Form Factor: Rackmount
- UPS Topology: Line-interactive
- Energy Saving Technology: GreenPower UPS Bypass Technology
- Nominal Input Voltage: 230 Vac
- Input Voltage Range: 165 - 271 Vac
- Adjustable Voltage Range: 253 - 271 Vac - 189 - 207 Vac
- Input Frequency: 50 ± 3 Hz
- 60 ± 3 Hz
- Input Frequency Detection: Auto-sensing
- Input Connector Type: IEC C14
- Detachable Power Cord Plug Type: IEC C14 x 1
- Power Cord Length: 1.83m
- Capacity: 1500 VA / 900 Watts
- On Battery Waveform: Simulated Sine Wave
- On Battery Voltage: 230 Vac ± 10%
- On Battery Frequency: 50 ± 1% Hz
- 60 ± 1% Hz
- Power Factor: 0.6
- Automatic Voltage Regulation (AVR): Single Boost
- Overload Protection: Internal Current Limiting
- Circuit Breaker
- Total Outlets: 6
- Outlet Type: IEC C13 x 6
- Battery & Surge Protected Outlets: 4
- Surge-Only Protected Outlets: 2
- Typical Transfer Time: 4 ms
- Runtime at Half Load: 11 min
- Runtime at Full Load: 2.5 min
- Typical Recharge Time: 8 hours
- Start On Battery: Yes
- User-replaceable: Yes
- Hot-swappable: Yes
- Replacement Battery Pack: RBP0026
- Replacement Battery Pack Quantity: 1
- Surge Suppression: 810 Joules
- EMI/RFI Filtration: Yes
- Phone/Network Protection: RJ11/RJ45 (Combo) 1-in
- 1-out
- LCD Information Display: Operation Type
- Power Status
- Battery Status
- Load Status
- Other Information
- LCD Setting & Control: Mode Setting
- Alarm Setting
- Input & Output
- HID Compliant USB Port: 1
- Serial Port: Dry Contact
- Audible Alarms: Battery Mode
- Low Battery
- Overload
- UPS Fault
- Management Cable: Power Cord x4
- USB Cable x1
- Power Management Software: PowerPanel Business (Recommended)
- SNMP/HTTP Remote Monitoring: Yes, with optional RMCARD205
- Enclosure Construction: Metal
- Rackmount Ears: Yes
- Dimensions: 433 x 44 x 389mm
- Weight: 14.9kg
- Installed Rack Height: 1U
- Online Thermal Dissipation: 24 BTU/hr
- Certifications: CE
- EAC
- RCM
- RoHS
- Warranty: 2 Years
Features:
- Line-interactive UPS Topology
- Simulated Sine Wave Output
- Overload Protection
- Surge and Spike Protection
- Phone/Fax/Modem/DSL/Network Protection
- USB Connectivity Port
- SNMP/HTTP Remote Management Capability (Optional)
- Energy Saving Technology
- Automatic Voltage Regulation (AVR)
- Hot-swappable Batteries
- EMI and RFI Filtration
- LCD Status Display
- PowerPanel Management Software
What's in the Box?
- 1 x OR1500ERM1U UPS
- 1 x Rackmount Ears
- 1 x Power Cord
- 1 x USB Cable
- 1 x User Manual
