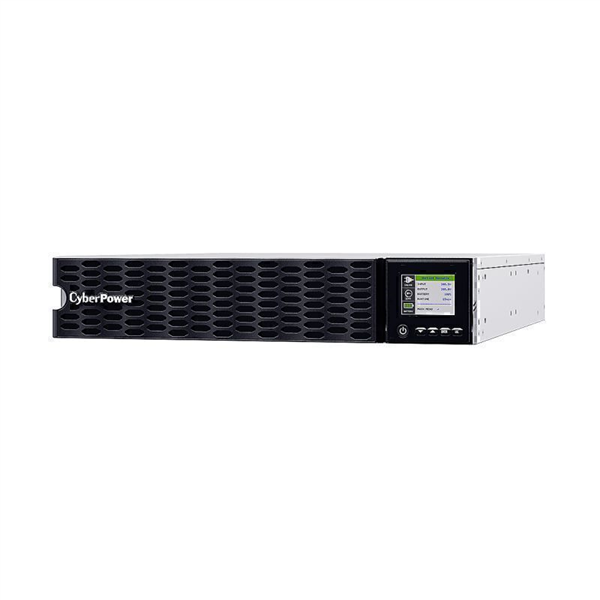

CP 6000VA/W RACK TOWER UPS
Code: 8217901
- The CyberPower OL6KERTHD offers dependable power backup for IT equipment, servers, workstations, NAS/storage devices, telecom, networking, security, emergency, and surveillance systems. It employs a double-conversion topology for optimal performance.
Specifications:
- Phase: Single Phase
- Form Factor: Rackmount, Tower
- UPS Topology: Online Double Conversion
- Energy Saving Technology: Online ECO Mode Efficiency > 97%
- Active PFC Compatibility: Yes
- Generator Compatibility: Yes
- Nominal Input Voltage (Vac): 200 ± 2%, 208 ± 2%, 220 ± 2%, 230 ± 2%, 240 ± 2%
- Input Voltage Range (Vac): 200 - 240
- Adjustable Voltage Range (Vac): 0-25% Load for 120 - 139 Vac, 0-50% Load for 140 - 159 Vac, 0-75% Load for 160 - 179 Vac, 0-100% Load for 180 - 280 Vac
- Input Frequency (Hz): 50 ± 10, 60 ± 10
- Input Frequency Detection: Auto-sensing
- Rated Input Current (A): 32
- Input Power Factor: 0.99
- Input Connector Type: Hardwire Terminal Block
- Output Capacity (Watts): 6000
- On Battery Waveform: Pure Sine Wave
- On Battery Voltage(s) (Vac): 200 ± 2%, 208 ± 2%, 220 ± 2%, 230 ± 2%, 240 ± 2%
- Output Voltage Setting: Configurable
- On Battery Frequency (Hz): 50 ± 0.5%, 60 ± 0.5%
- Output Frequency Setting: Configurable
- Power Factor: 1
- ECO Mode Voltage Tolerance: ± 10%, ± 15%
- Overload Protection: Internal Current Limiting, Circuit Breaker
- Overload Protection (Line Mode): 105-125% Load for 1 min, 125-150% Load for 10 sec
- Overload Protection (Battery Mode): 105-130% Load for 10 sec, 130-150% Load for 2 sec
- Overload Protection (Bypass Mode): Circuit Breaker
- Crest Factor: 3:1
- Harmonic Distortion (Linear Load): THD ? 3%
- Harmonic Distortion (Non-linear Load): THD ? 5%
- Internal Bypass: Automatic Bypass, Manual Bypass
- Outlet(s) - Total: 7
- Outlet Type: IEC C13 x 4, IEC C19 x 2, Hardwire Terminal Block x 1
- Outlet(s) - Battery & Surge Protected: 7
- Outlet(s) - Critical Load (CL): 4
- Outlet(s) - Non-Critical Load (NCL): 3
- Typical Transfer Time (ms): 0
- Runtime at Half Load (min): 4.9
- Runtime at Full Load (min): 1.4
- Typical Recharge Time (Hours): 4
- Start On Battery: Yes
- Smart Battery Management (SBM): Yes
- Built-in Battery Management Module: Yes
- User-replaceable: Yes - Qualified Personnel Only
- Hot-swappable: Yes
- Battery Type: Sealed Lead-acid
- Replacement Battery Pack: RBP0144
- RBP Quantity (pcs): 1
- Battery Quantity (Each RBP) (pcs): 12
- Battery Voltage (Each RBP) (V): 144
- Compatible Extended Battery Module (EBM): BPE144VL2U01 (Built-in Charger)
- Max. EBM Quantity (pcs): 10
- Surge Suppression (Joules): 2430
- EMI/RFI Filtration: Yes
- LCD Orientation: Rotatable LCD - Automatic, via Setting
- Tiltable LCD Panel: 18°
- LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
- LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting, Language
- HID Compliant USB Port(s): 1
- Emergency Power Off (EPO) Port: Yes
- Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
- Management Cable (pcs): USB Cable x1, Serial Cable x1
- Power Management Software: PowerPanel Business (Recommended)
- SNMP/HTTP Remote Monitoring: Yes - RMCARD205 included
- Enclosure Construction: Metal
- Rackmount Rail: Yes
- Rackmount Ears: Yes
- Dimensions: 433 x 86.5 x 720mm
- Rack-mounted Dimensions: 433 x 86.5 x 685mm (Without the dimension of front panel)
- Weight: 42kg
- Certifications: CE, EAC, RCM
Features:
- Online (Double Conversion) UPS Topology
- High Density Design
- High Output Power Factor
- Tiltable LCD Panel
- Surge and Spike Protection
- Generator Compatible
- Hot-swappable Batteries
- Smart Battery Management (SBM)
- SNMP/HTTP Remote Management Capability
- ECO Mode
- Color LCD Panel
- Quick Charging Technology
- Automatically Rotatable LCD
- Critical/Non-critical Load Outlets
- Battery Management Technology
- Extended Battery Module (EBM)
- Emergency Power Off (EPO) Port
- PowerPanel Management Software
