25W LED PSU 180-295VAC 24-36VDC/0.7A DIM
Code: 8223045

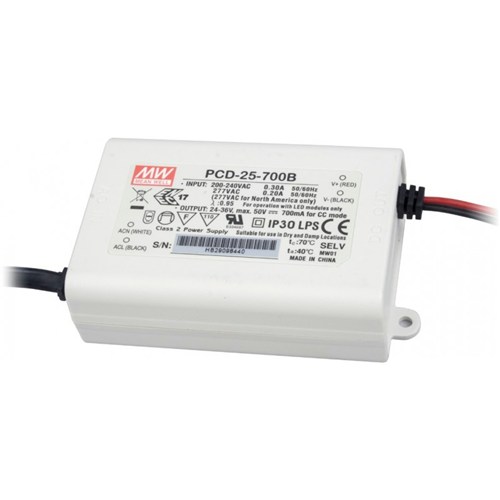

25W LED Power Supply, Model DIMPCD-25-700BSO by Meanwell, Product Code: 401462
**Key Features:**
- AC Phase-Cut Dimming Compatibility
- Compatible with Leading and Trailing Edge Triac Dimmers
- Constant Current Design
- Short Circuit and Over-Temperature Protection
- Free Air Convection Cooling
- Fully Isolated Plastic Enclosure
- IP42 Rated Design
- 100% Full Load Burn-in Test
- 3-Year Warranty
**Technical Specifications:**
- Rated Current: 700mA
- Operating Voltage: 24-36VDC
- Current Accuracy: ±5%
- Ripple: 2.7V peak-to-peak
- No-Load Output Voltage: 50VDC
- Efficiency: 81%
- AC Current: 0.3A at 230VAC
- Operating Temperature Range: -30°C to 60°C
Please note: Prices are shown including GST (where applicable) and are in AUD$
