APC SERVICE BYPASS PANEL 230V MBB 125A HW INPUT IEC-320 OUTPUT (8) C19
Code: 8552660 OEM Code: SBP20KRMI4U Brand: APC
You're mid-service on a UPS and the whole rack is down. Or you've got eight high-draw feeds to route past the inverter for a firmware update and you'd rather not pull the plug on the server room.

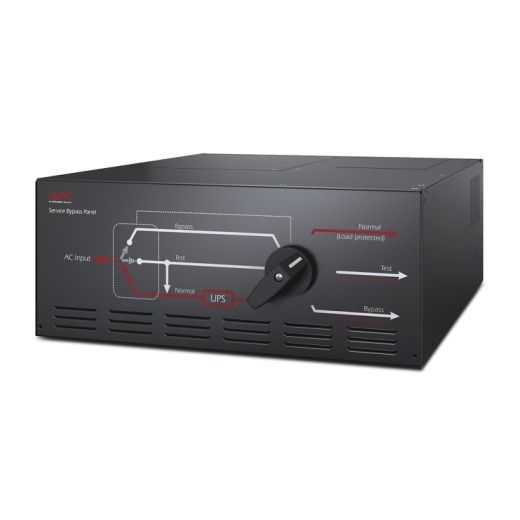

This APC bypass panel slots into your 4U rack and gives you a clean, hard-wired path around the UPS. Eight C19 outlets on the output side, 125 A max line current, 20 000 VA load capacity. Input accepts a 3-wire (1P + N + E) or 5-wire (3P + N + E) hard-wire connection at 230 V single-phase, 50/60 Hz.
Circuit-breaker protection built in. 99 % efficiency means you're not paying for phantom loss on a panel that's always live. Operating range –20 to 50 °C, 0–95 % RH. Rack-mount brackets and the user manual are in the box.
If your UPS service window is this month and you don't want to lose uptime, this is the part that keeps the lights on while the tech works.
Add to cart and we'll have it staged for dispatch from our warehouse.
Please note: Prices are shown including GST (where applicable) and are in AUD$
