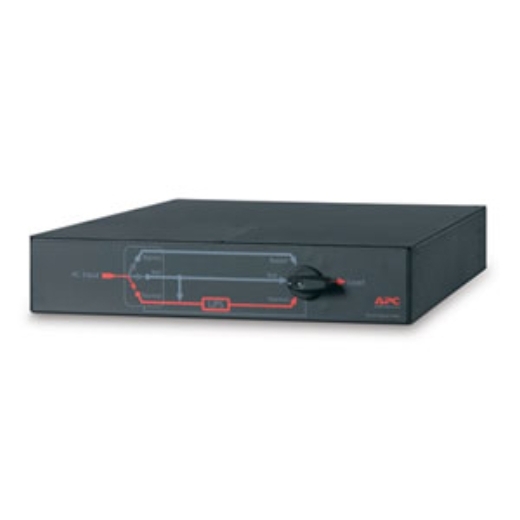

APC SERVICE BYPASS PANEL- 230V; 50A; MBB; IEC320 C20/HW INPUT; IEC-320 OUTPUT- (2) C19 (8) C13
Code: 8549200 OEM Code: SBP5000RMI2U Brand: APC
Small server closet. One UPS. You need to swap a battery pack or run a firmware update without killing the eight switches and two high-draw drives plugged into the back.
This APC 2U bypass panel does exactly that. Input takes an IEC 60320 C20 plug or a hard-wire 3-wire (1P + N + E) connection at 230 V, 50/60 Hz. Output side: eight C13 outlets plus two C19 outlets, all fed through a 32 A circuit breaker.
7 680 VA load capacity, 99 % efficiency, power factor 0–1. CSA and GOST certified. Meets EN/IEC 62040-1:2019/A11:2021 and EN/IEC 62040-2:2018. Operating range –20 to 50 °C, 0–95 % RH.
Rack-mount brackets (both rack and wall) are in the box alongside the hardwire panel and user manual. Two U of space, no wasted depth.
If your next UPS service is booked and you'd rather not go dark, this is the clean path around the inverter.
