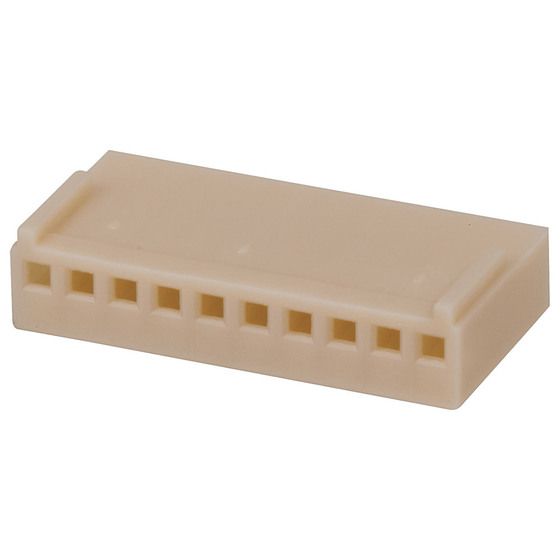

10 PIN 0.1IN HEADER WITH CRIMP PINS - 2.54MM PITCH
Code: 8018708 Brand: JAYCAR
You need a 10-pin connection on your PCB that locks in, seats properly, and doesn't half-pop out when the board flexes. Tired of headers that feel like they're one bump away from a cold solder joint?
This 10-pin 0.1in header is built for that job. Square tin-plated brass crimp pins stick out 3.4mm on one side so you get a solid solder connection. The UL 94V-0 white nylon wafer sits flat at 3.3mm thick, and the back gives you locking plus polarising — right orientation, every mating.
Plug boards together end-to-end or at right angles. Butt sockets up for any pin count from 2 upwards. Normal mating force is 200g minimum, rated from 0 to +75°C.
In stock here now. Add to cart and it's on its way.
